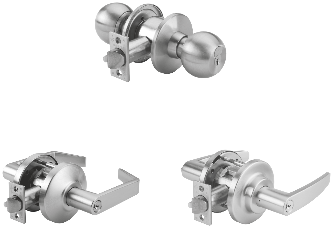

KB Knob IC with B Rose

LR Lever with C Rose

LG Lever with E Rose

Available in:

Contact Cumberland Cameras & Locks for more details on color.

C800 Series - Grade 1 Heavy-Duty Cylindrical Locksets


    C800 Series - Grade 1 Heavy-Duty Cylindrical Locksets

    The C800 Series Grade 1 heavy-duty cylindrical locksets provide exceptional security, enhanced aesthetics, and rugged dependability. These premium locks are built with a high performance cylindrical chassis for all applications where ANSI/BHMA A156 2 Series 4000 Grade 1 products are required. To meet the aesthetic needs of your project, these versatile locks are available in a range of levers or knob trim design.


    Standard Features

    • C800 Series locks are easy to install in all swinging doors with ANSI/BHMA Standard A156.115 preparations for cylindrical locks


    • C800 Series lever locks are easily adjustable to accommodate doors from 1-3/4"-2-1/4" thick without spacers (1-3/8"-1-5/8" with spacers 660005).


    • Consult the factory for other thicknesses
    • C800 Series knob locks will accommodate doors from 1-3/8"-2" thick without spacers or special tools


    • Lever sets meet ADA requirements for barrier-free accessibility


    • Non-handed for simple installation (excluding LF or LV handed levers)

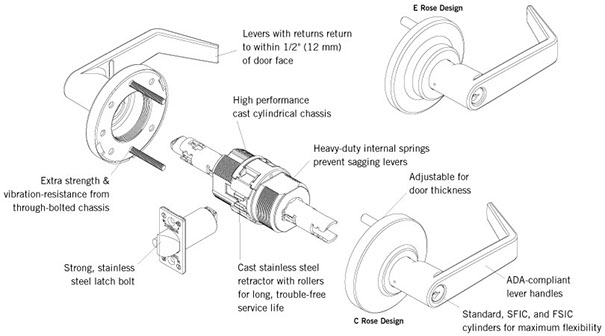

    • Key-in-lever lock is through-bolted for additional strength and security


    • Cast stainless steel latch retractor with roller bearings for exceptionally smooth operation and superior strength and durability


    • Lock chassis constructed of steel, stainless steel and zinc components for superior strength and corrosion resistance


    • Stainless steel latch bolt for superior strength


    • Auxiliary deadlocking latch bolt for strength and durability


    • Premium PVD (physical vapor deposition) finishes for consistent durable color on 605, 606, 612, 613 and 619


    • Electrical requirement: 24VDC, 0.145 & 12VDC, 0.290A


    • Request-to-exit signaling switch: 250VAC, 1A, 22AWG wire leads on lever locks




    630 - Satin Stainless (Knob Designs)


    626 - Satin Chrome


    625 - Bright Chrome


    619 PVD - Satin Nickel


    613 PVD - Dark Oxidized Satin Bronze


    612 PVD - Satin Bronze


    606 PVD - Satin Brass


    605 PVD - Bright Brass (Lever Designs)


    605 - Bright Brass (Knob Designs)



    • 2 year limited warranty on electrified locksets


    • 10 year limited warranty on mechanical locksets

    Electromechanical Functions

    Electrically locked fail safe.

    Electrically unlocked fail secure.


    Electrical Requirements for Solenoid Functions

    Voltage: 24 VDC regulated, filtered.

    Current: 0.145 A.

    UL and CUL listed for use on fire doors.

    • Solenoids are rated for continuous duty.
    • Repeated operation at voltage exceeding +/-10% is not recommended.


    Monitoring Option

    RX: Request-to-exit signaling switch.

     Voltage: 250 VAC.

     Current Rating: 1 A.

     Wire Leads: 22 AWG.

    • A microswitch attached to chassis is activated by inside lever. The switch signals the lever use to security, allowing a means of immediate egress.
    • Available on the following functions: C810, C850, C853, C870, C880, C880EL, C880EU.


    When ordering specify RX. Example: C880EURX.


    CAUTION: Not recommended for use on doors used for Life Safety egress.


    Certifications & Testing

    • ANSI/BHMA Certified to A156.2 Series 4000 Grade 1


    • Tested to 3.5 million cycles by an independent laboratory


    • Meets A117.1 accessibility code and ADA requirements for barrier-free accessibility


    • UL/cUL - UL 10C Positive Pressure All C800 Series locks are listed 3 hour fire rated
    • All C800 Series locks are listed 3 hour fire rated
    • Locks with 1/2" throw latch bolts are listed for A label and lesser class doors, 4'0" × 8'0" maximum per leaf


    • California State Reference Code (formerly title 19, California State Fire Marshal standard), all levers with returns, return to within 1/2" (12 mm) of door face
